OVERVIEW
034Motorsport is proud to offer the ultimate rear sway bar upgrade for the B9/B9.5 Audi A4/S4, A5/S5/RS5, and Allroad! The 034Motorsport Dynamic+ Adjustable Rear Sway Bar is made from a single piece of high-quality, 22.2mm thick spring steel for maximum rigidity, and is designed to combat understeer while reducing body roll under hard cornering.
This product was tested thoroughly on the street and track on 034Motorsport's in-house B9 Audi A4 Development Vehicle before release. The 034Motorsport Dynamic+ Adjustable Rear Sway Bar substantially reduces understeer and body roll on B9/B9.5 Audi A4/S4, A5/S5/RS5, and Allroad vehicles without compromising comfort on the street.
In addition, the 034Motorsport Dynamic+ Rear Sway Bar is engineered to be used effectively with the stock front sway bar, and maintains factory levels of comfort and driveability. No upgrade in the front is required with this rear sway bar. The addition of a stiffer front bar can positively affect turn-in feel, but ultimately worsens the platform's tendency to understeer. With the stock front sway bar and upgraded 034Motorsport Solid Rear Sway Bar, body roll is substantially reduced, while turn in and off throttle oversteer are greatly improved.
034Motorsport Sway Bar Kits feature maintenance-free polyurethane bushings with a Teflon and polyester liner designed to enhance sway bar response speed while minimizing noise, vibration, and harshness (NVH). This liner also results in an extended service life that allows these bushings to even outlast your vehicle. With no need for additional lubrication, these bushings offer reliable, long-lasting performance without the hassle of regular maintenance and greasing. Built to withstand extreme conditions, the bushings are hydrophobic, heat-resistant up to 500°F, and resistant to water and common automotive chemicals. These bushings are covered by a limited lifetime warranty which covers material cracking, separation of the Teflon liner and polyurethane bushing, or squeaking under normal street or track conditions.
Track-Tested, Street-Refined Handling Performance
Dynamic+ Adjustable Rear Sway Bar Features:
- Improved Vehicle Dynamics & Handling Feel
- Reduced Body Roll
- Decreased Understeer
- 2-Way Adjustable - 173% to 210% Increased Sway Bar Rate (Over Factory "Sport" 18.5mm Hollow Rear Sway Bar)
- One-Piece 22.2mm Diameter Solid Spring Steel Construction
- Direct Bolt-On Upgrade
- Designed for Use with Factory Front Sway Bar
- Greaseless, Maintenance Free, Teflon Lined Polyurethane Bushings
- Teflon and Polyester Composition Liner That Virtually Eliminates Noise, Vibration and Harshness (NVH).
- Improves Sway Bar Response Speed
- Extended Service Life
- No Additional Lubricant Needed, and Should Not Be Added
- Hydrophobic and Waterproof, Will Not Absorb Water or Be Affected In Even The Wettest Environments
- Is Not Chemically Reactive and Will Not Be Affected By Common Chemicals Present In The Automotive Environment
- Heat Resistant, Can Operate Continuously At Temperature Up to 500°F, Much Higher Than What Any Bushing Would See
- Limited Lifetime Warranty, Covering Manufacture Defects:
- Material Cracking
- Separation Of Teflon Liner and Polyurethane Bushing
- Squeaking Under Normal (Street/Track) Conditions.
Complete, Bolt-On Package
What's Included:

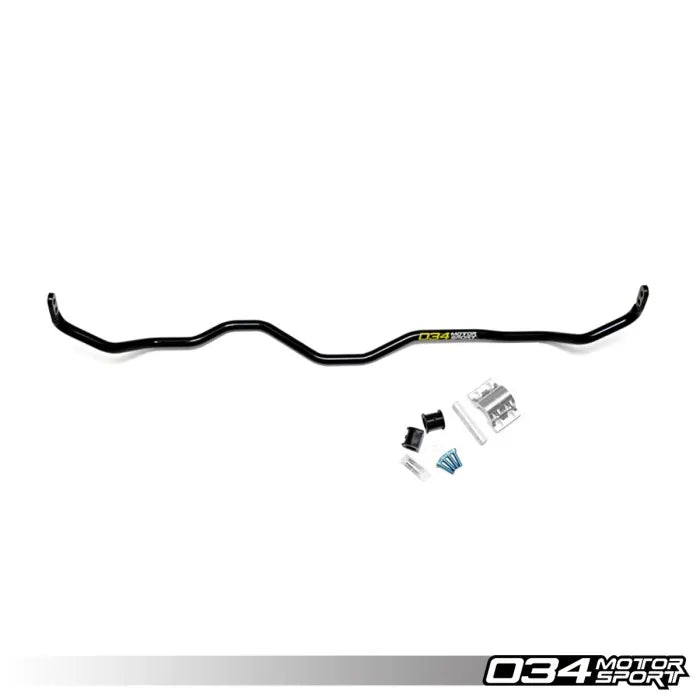

- 034Motorsport Dynamic+ B9/B9.5 Audi A4/S4/A5/S5/Allroad Adjustable Rear Sway Bar

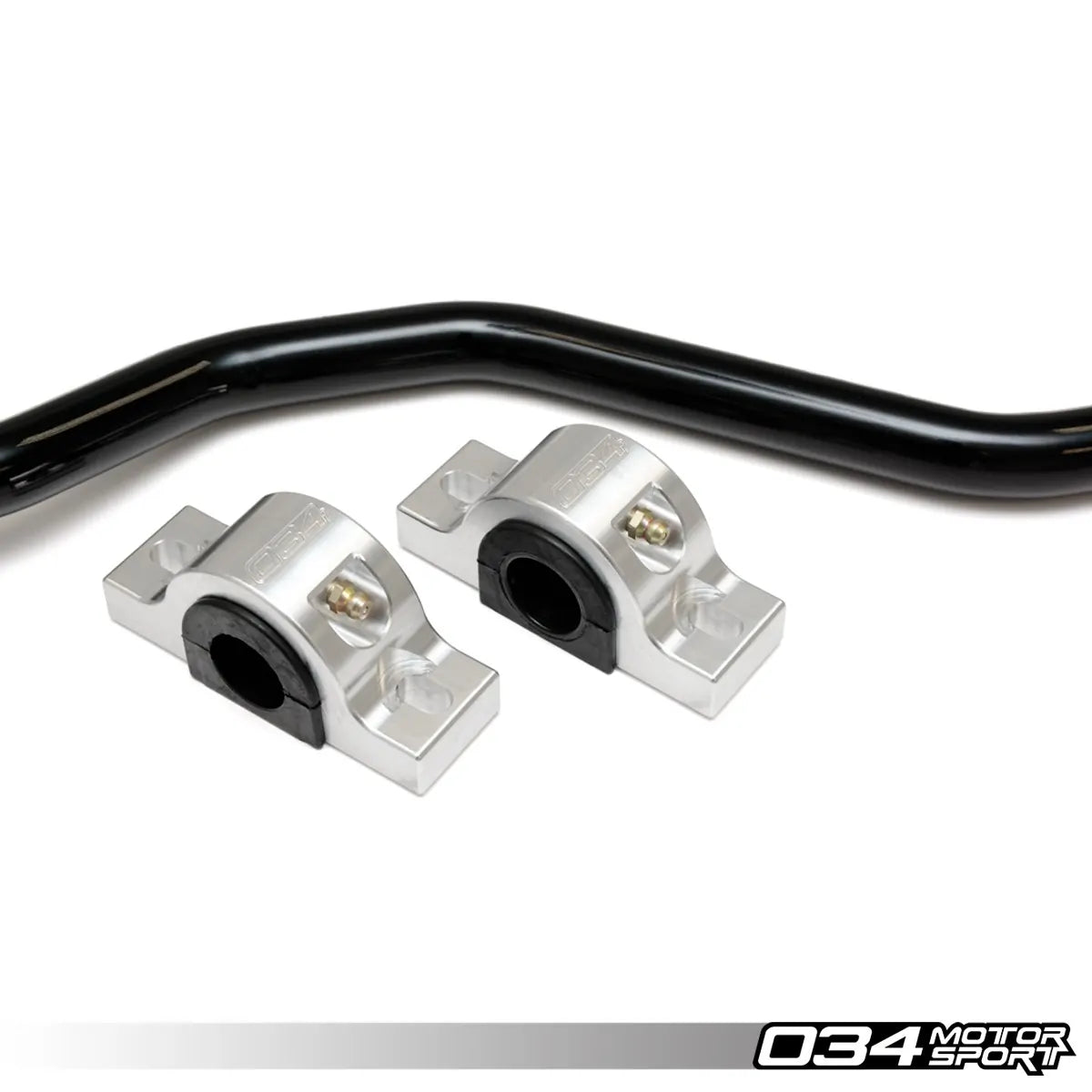

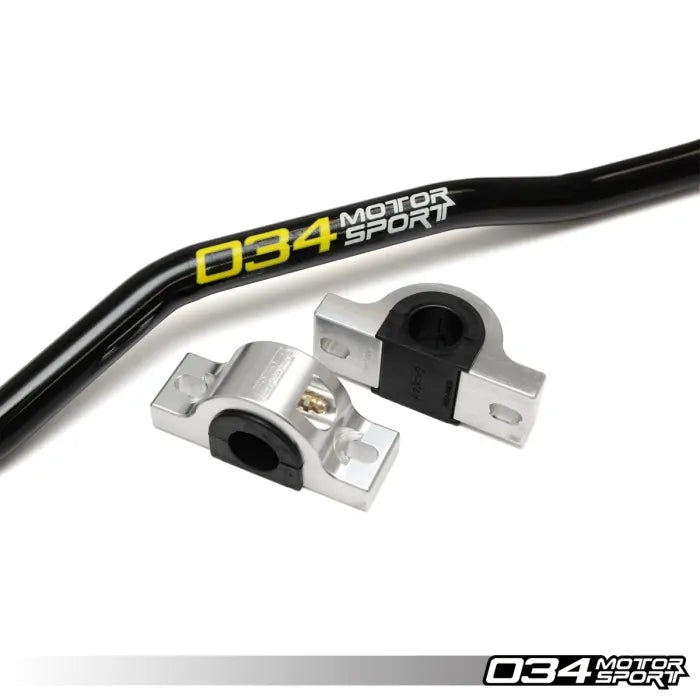

- Billet Aluminum Sway Bar Brackets (Pair)
- Teflon Lined Polyurethane Sway Bar Bushings (Pair)
- Sway Bar Bushing Backing Plates (Pair)
- M8x30mm Allen Bolts (Set of 4)
- Zinc Coated M8 Washers (Set of 4)
- Super Lube Sway Bar Bushing Lubricant
Fitment:
- 2017 - Present Audi A4 (B9/B9.5)
- 2017 - Present Audi S4 (B9/B9.5)
- 2017 - Present Audi A5 (B9/B9.5)
- 2017 - Present Audi S5 (B9/B9.5)
- 2017 - Present Audi Allroad (B9/B9.5)
- 2018 - Present Aud RS5 (B9/B9.5)
Installation Instructions:
NOTE: If running this bar in the soft setting, with stock end links, the plastic control arm shields need to be removed.
