OVERVIEW

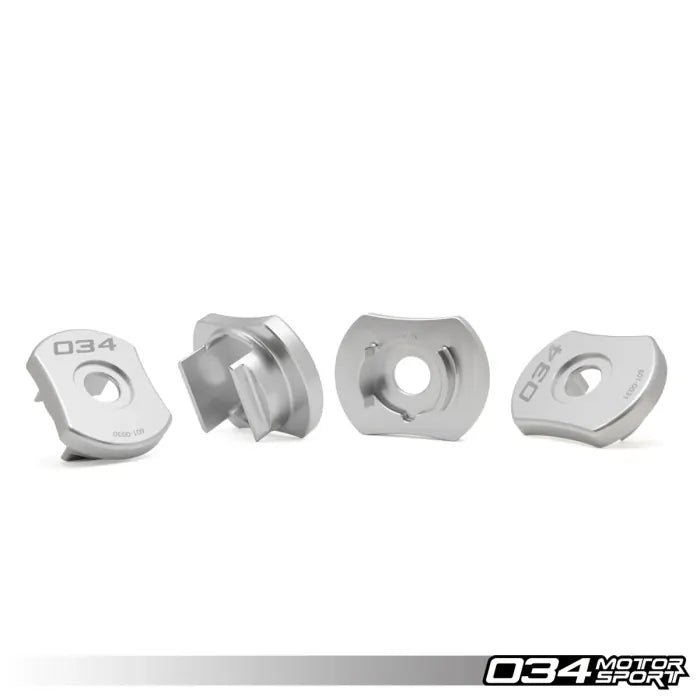

034Motorsport is pleased to present Billet Aluminum Rear Subframe Mount Inserts for the Volkswagen & Audi MQB and MQB EVO AWD!
MQB Audi/Volkswagen vehicles equipped with Haldex AWD use rubber rear subframe mounts which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.
Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

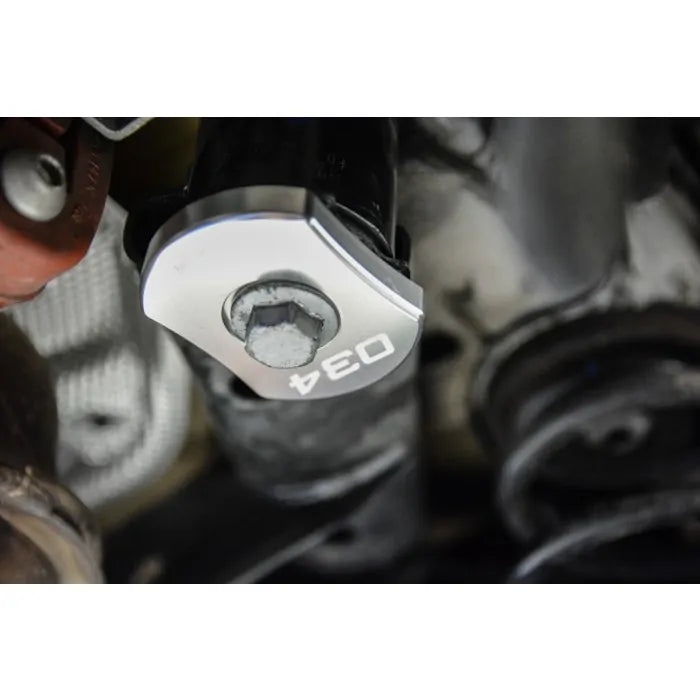

These inserts were tested extensively by 034Motorsport and independent Audi/Volkswagen enthusiasts before release on new MQB chassis AWD vehicles. Installation is very simple, can be performed in under an hour, and is completely reversible.
Features:
- T6-6061 Billet Aluminum Construction
- CNC-Machined In-House
- Clear Anodized Finish for Durability
- Engineered to Fill Voids In Factory Rear Subframe Mounts
- Helps Maintain Proper Suspension Geometry When Cornering
- Reduces Rear Subframe Movement During Launches & Acceleration
- Improves Shifting Feel, Resulting in Crisper Shifts
- Virtually No Additional NVH Transfer Inside Cabin
- Easy, Straightforward Installation
- 034Motorsport Billet Aluminum AWD Rear Subframe Insert - Front (Pair)
- 034Motorsport Billet Aluminum AWD Rear Subframe Insert - Rear (Pair)
Please Note: The factory rear subframe bolts are torque-to-yield bolts, and we recommend replacing them when installing these inserts. A new set of four OEM bolts is available separately above.
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | A3 | 2015-2016 | 8V | 1.8 TFSI |
| Audi | A3 | 2015-2020 | 8V/8V.5 | 2.0 TFSI |
| Audi | Q2 | 2017-2021 | MQB | 2.0T |
| Audi | RS3 | 2017-2020 | 8V.5 | 2.5 TFSI EVO |
| Audi | RS3 | 2022-Present | 8Y | 2.5 TFSI EVO |
| Audi | S3 | 2015-2020 | 8V/8V.5 | 2.0 TFSI |
| Audi | S3 | 2022-Present | 8Y | 2.0 TFSI |
| Audi | TT | 2008-2015 | 8J | 2.0 TFSI |
| Audi | TT | 2008-2015 | 8J | 2.0 TSI |
| Audi | TT | 2008-2015 | 8J | 2.0T FSI |
| Audi | TT | 2008-2015 | 8J | 3.2L VR6 24V |
| Audi | TTS | 2008-2015 | 8J | 2.0T FSI |
| Audi | TTS | 2016-2020 | 8S | 2.0T Gen 3 |
| Audi | TTRS | 2018-2020 | 8S | 2.5 TFSI EVO |
| Cupra (Seat) | Formentor | 2021-Present | Mk1 | 2.0T |
| Seat | Ateca | 2016-2021 | Mk1 | 2.0T |
| Seat | Leon | 2012-2020 | MQB | 2.0T |
| Seat | Tarraco | 2019-2021 | Mk1 | 2.0T |
| Skoda | Kodiaq | 2016-Present | Mk1 | 2.0T |
| Skoda | Octavia | 2013-2020 | Mk3 | 1.8T/2.0T |
| Skoda | Superb | 2016-2020 | B8 | 1.8T/2.0T |
| VW | Golf SportWagen | 2015-2020 | MkV7/MkV7.5 | 1.8T Gen3 |
| VW | Golf Alltrack | 2015-2020 | MkV7/MkV7.5 | 1.8T Gen3 |
| VW | Golf R | 2015-2019 | Mk7/Mk7.5 | 2.0 TSI Gen 3 |
| VW | Golf R | 2021-Present | Mk8 | 2.0T Gen4 |
NOTES:
- 2013 - 2015 Audi TT/TTS/TTRS Quattro (8J) - With Build Date After 05/29/2012
- Fits 4Motion Vehicles Only
- Does Not Fit 2.0 TDI Models
- Not compatible with 8S TT/TTS roadster (convertible)
